Introduction

Fiat QR code payment by AI.

📘
Process Overview
The payment process involves two sequential requests:

Step 1: Request sent without the PAYMENT-SIGNATURE header → The system creates an order, returning an HTTP 402 along with the payment requirements (accepts).

Step 2: The client completes the EIP-712 signature locally and retries the request with the PAYMENT-SIGNATURE header → The system completes the on-chain settlement via the facilitator, returning an HTTP 200 along with the PAYMENT-RESPONSE header.

Client-side reference implementation: AEOX-X402 demo

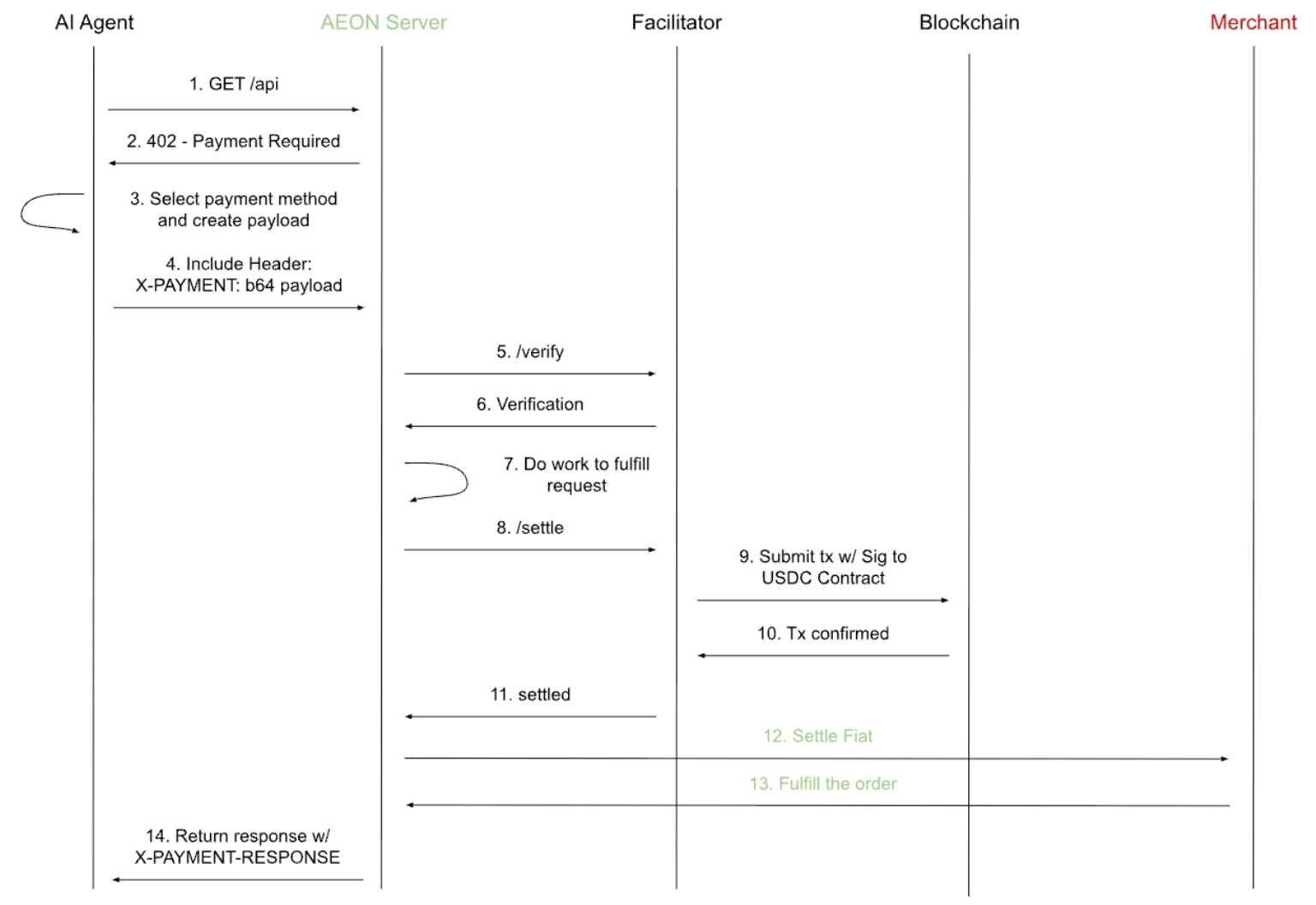

Flow Chart

QR Code Payment (x402 Protocol V2)

Request Method

HTTP Method: GET
Path: open/ai/402/payment

Request Parameters

Parameter	Required	Type	Length	Description
appId	Yes	string	64	App ID
qrCode	Yes	string	512	QR code string
email	Yes	string	128	User email
network	No	string	64	Network: BSC/BASE/X (Defaults to BSC if omitted, case-insensitive)
token	No	string	16	Payment currency: USDT/USDC/USDG (Defaults to USDT if omitted; X network supports USDC/USDG only; case-insensitive)
amount	No	string	20	Order amount

Request Headers (Step 2 Only)

Header	Required	Description
PAYMENT-SIGNATURE	Required for Step 2	Base64-encoded string of the payment payload (`paymentPayload`) JSON. See below for details on structure.

Supported Networks and Tokens

network	token	Token Contract	Decimals	eip3009	Signature Scheme
BSC（eip155:56）	USDT	`0x55d398326f99059fF775485246999027B3197955`	18	false	approve + facilitator deduction
BSC（eip155:56）	USDC	`0x8ac76a51cc950d9822d68b83fe1ad97b32cd580d`	18	false	approve + facilitator deduction
BASE（eip155:8453）	USDC	`0x833589fCD6eDb6E08f4c7C32D4f71b54bdA02913`	6	true	EIP-3009 direct signature (gasless)
BASE（eip155:8453）	USDT	`0xfde4C96c8593536E31F229EA8f37b2ADa2699bb2`	6	false	approve + facilitator deduction
X（eip155:196）	USDC	`0x74b7f16337b8972027f6196a17a631ac6de26d22`	6	true	EIP-3009 direct signature (gasless)
X（eip155:196）	USDG	`0x4ae46a509f6b1d9056937ba4500cb143933d2dc8`	6	true	EIP-3009 direct signature (gasless)

🚧
Facilitator Notes

Facilitator Contract Address: 0x555e3311a9893c9B17444C1Ff0d88192a57Ef13e

For combinations where eip3009=false, the client must issue a sufficient approve authorization to the facilitator contract prior to signing (one-time setup, requires a small amount of native tokens for gas). The settlement gas is covered by the facilitator.

Step 1: Obtain Payment Requirements

Request Example

curl --location 'https://ai-api-sbx.aeonpay.ai/open/ai/402/payment?appId=TEST000001&qrCode=00020101021138560010A0000007270126000697041501121170028740400208QRIBFTTA53037045802VN63048A1C&email=user%40example.com&network=BSC&token=USDT'

HTTP 402 Response Example

{
  "x402Version": 2,
  "orderNo": "400017865060843652397",
  "resource": {
    "url": "https://ai-api.aeonpay.ai/open/ai/402/x402payment",
    "description": "AEON payment with x402",
    "mimeType": "application/json"
  },
  "accepts": [
    {
      "scheme": "exact",
      "network": "eip155:56",
      "amount": "550000000000000000",
      "asset": "0x55d398326f99059fF775485246999027B3197955",
      "payTo": "0xc2c010… (Payment receiving address, dynamically generated per order)",
      "maxTimeoutSeconds": 300,
      "extra": {
        "name": "USDT",
        "version": "1",
        "orderNo": "400017865060843652397",
        "tokenSymbol": "USDT",
        "tokenDecimals": 18,
        "eip3009": false
      }
    }
  ],
  "error": "PAYMENT-SIGNATURE header is required",
  "code": "402",
  "msg": "PAYMENT-SIGNATURE header is required",
  "traceId": "6a7beb596cac03e22b6117f7bce440b6"
}

accepts Field Descriptions

Parameter	Type	Description
scheme	string	Payment scheme, fixed as `exact`
network	string	Blockchain network in CAIP-2 format (`eip155:56` / `eip155:8453` / `eip155:196`)
amount	string	Payment amount (smallest token unit, scaled by tokenDecimals)
asset	string	Token contract address
payTo	string	Payee receiving address
maxTimeoutSeconds	number	Signature authorization validity period (in seconds)
extra.name	string	EIP-712 domain name (used for EIP-3009 direct signing)
extra.version	string	EIP-712 domain version
extra.orderNo	string	System order number
extra.tokenSymbol	string	Token symbol
extra.tokenDecimals	number	Token decimals
extra.eip3009	boolean	Indicates whether EIP-3009 is supported; if false, the client must use the approve + facilitator deduction signature workflow

Step 2: Submit PAYMENT-SIGNATURE to Complete Payment

PAYMENT-SIGNATURE Structure

PAYMENT-SIGNATURE is the Base64-encoded string of the following JSON structure:

{
  "x402Version": 2,
  "payload": {
    "authorization": {
      "from": "0xPayerAddress",
      "to": "0xPayeeAddress (Must match accepts.payTo)",
      "value": "550000000000000000",
      "validAfter": "1786506621",
      "validBefore": "1786506981",
      "nonce": "0x…32-byte random hex string…"
    },
    "signature": "0x…EIP-712 Signature…"
  },
  "resource": {
    "url": "…",
    "description": "…",
    "mimeType": "application/json"
  },
  "accepted": {
    "...The exact accepts[] object returned in Step 1 passed back as-is..."
  }
}

📘
Signature Method Differentiation (based on extra.eip3009)

eip3009=true: EIP-712 domain is the token contract itself (name/version sourced from extra, verifyingContract is asset), type is TransferWithAuthorization, with fields from/to/value/validAfter/validBefore/nonce.

eip3009=false: Ensure prior approve authorization to the facilitator contract; EIP-712 domain is { name: "Facilitator", version: "1", verifyingContract: facilitator address }, type is tokenTransferWithAuthorization, with fields token/from/to/value/validAfter/validBefore/nonce/needApprove (needApprove is fixed to true, and token/from/to must be lowercase addresses).

🚧
Validation Rules
authorization.value must equal accepts.amount, and authorization.to must equal accepts.payTo. Otherwise, a parameter validation error will be returned.

Request Example

curl --location 'https://ai-api-sbx.aeonpay.ai/open/ai/402/payment?appId=TEST000001&qrCode=00020101021138560010A0000007270126000697041501121170028740400208QRIBFTTA53037045802VN63048A1C&email=user%40example.com&network=BSC&token=USDT' \
--header 'PAYMENT-SIGNATURE: eyJ4NDAyVmVyc2lvbiI6MiwicGF5bG9hZCI6… (Base64 encoded paymentPayload JSON)'

HTTP 200 Body Response Example

{
  "code": "0",
  "model": "Payment successful",
  "msg": "success",
  "traceId": "6a7bf6c0d4cff1f0d0f56b1b40d36271"
}

HTTP 200 Header Response Example

Settlement details are returned in the PAYMENT-RESPONSE response header (Base64-encoded):

PAYMENT-RESPONSE: eyJzdWNjZXNzIjp0cnVl… (Base64 encoded settlement result JSON)

Decoded JSON content from Base64:

{
  "success": true,
  "transaction": "0xc72eabfa… (On-chain transaction hash)",
  "network": "eip155:56",
  "payer": "0x34B7FE…F510"
}

Parameter	Type	Description
success	boolean	Whether the on-chain settlement was successful
transaction	string	On-chain transaction hash
network	string	Blockchain network (CAIP-2 format)
payer	string	Payer's wallet address

Error Responses

Signature Verification Failure: HTTP 403, body contains invalidReason.
On-chain Settlement Failure (e.g., Insufficient Balance): HTTP 402, body contains errorReason. Example:

{
  "success": false,
  "errorReason": "Failed to settle transaction: Execution reverted with reason: BEP20: transfer amount exceeds balance…",
  "transaction": "",
  "network": "eip155:56",
  "payer": "0x34B7FE…F510",
  "code": 402,
  "msg": "Failed to settle transaction: …",
  "traceId": "…"
}

Order Query

HTTP Method: GET
Path: open/ai/402/query

Parameter	Required	Type	Description
orderNo	Yes	string	System order number (`orderNo` from Step 1 response)

Response Example

{
  "code": "0",
  "msg": "success",
  "model": {
    "num": "400017865068610252406",
    "merchantOrderNo": "400417865068607681723",
    "qrCode": "00020101021138560010A000000727…",
    "usdAmount": 0.53849246,
    "orderAmount": 14070,
    "orderCurrency": "VND",
    "fiatExchangeRate": 0.000038272385,
    "status": "SUCCESS",
    "createTime": "2026-08-12 11:54:21",
    "paymentFlag": "AI_PAYMENT_SUCCESS_ORDER_INFO",
    "bankData": {
      "bankAccountName": "ICB",
      "bankCode": "970415",
      "bankAccountNumber": "970415",
      "bankName": "ICB"
    }
  },
  "traceId": "6a7bee87f318d491aff7f710be22101b"
}

model Payment Receipt Description

Parameter	Type	Description
num	string	System order number
merchantOrderNo	string	Merchant order number
qrCode	string	QR code string
usdAmount	string	Amount in USD
orderAmount	string	Amount in fiat currency
orderCurrency	string	Order fiat currency code
fiatExchangeRate	string	Fiat exchange rate
status	string	Order status (`INIT` / `SUCCESS` / `FAIL`)
createTime	string	Transaction creation timestamp
bankData	object	Bank details object

bankData Bank Information

Parameter	Type	Description
bankAccountName	string	Bank account name
bankAccountNumber	string	Bank account number
bankCode	string	Bank code
bankName	string	Bank name

📘
Additional Notes

Key Changes from V1:

Request header changed from X-PAYMENT to PAYMENT-SIGNATURE.

Response header changed from X-Payment-Response to PAYMENT-RESPONSE.

x402Version is fixed to 2.

Request parameter address changed to email, and added token.

accepts schema normalized (maxAmountRequired → amount, network converted to CAIP-2 format).

BSC network no longer accepts transaction hashes directly; all transactions follow the signature + facilitator settlement model.

Signature Validity: Signature authorization is only valid within the time window between validAfter and validBefore. The nonce is single-use to prevent replay attacks.

Cache Expiration: Order cache expires in 59 minutes; please re-execute Step 1 upon expiration.

Error Handling: Refer to the Error Code documentation on the homepage for a comprehensive list of error codes.
